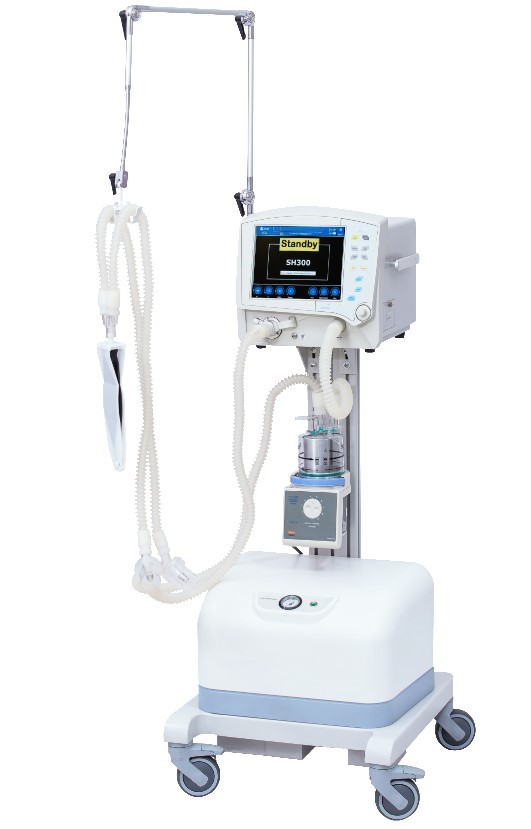

2020 In Stock Manufacturer Wholesale ICU Ventilator SH300
Feature
10.4" TFT color screen
· Easy setting by navigator wheel knob and touch key
· Wide choice of ventilation modes including CPAP, APRV, BIPAP
· Flow and pressure trigger
· Static compliance and resistance monitor
· PEEP, P-V loop, V-F loop
· Three-level visual and audible alarm, with concise words describing
problems
· Advanced built-in electronic air-oxygen mixing device
· Durable and accurate built-in flow sensor
· Integrated expiration valve, easy to be sterilized
· Backup apnea ventilation
· Auto nebulizer
· Built-in battery
Product Description
Assist functions
Freeze: Freeze current screen and suspend real-time data
Insp hold: 15s max
Exp hold: 15s max
O2 suction: 100% O2 for 2 munites
Manual insp
Alarms
MV-upper limit: 0~99L
MV-lower limit: 0~99L
Paw-upper limit: 0.1~8KPa
Paw-lower limit: 0~7.9KPa
VTE-upper limit: 0.05~2.00L, OFF
Rate-upper limit: 0~100bpm
Rate-low limit: 0~99bpm
Tapnea: 15~60s
FiO2-upper limit: 21~100%
FiO2-lower limit: 21~99%
Main failure, Battery low, Battery discharged, Air/O2 supply down, Circuit occlusion
Power and environmental
Power: AC110~240V, 50~60Hz, DC 12V, 4.4AH
Power comsumption: 65VA
Driven mode: Pneumatically driven, electronically controlled
Air/O2 supply: Pressure 0.28~0.6MPa >50L/min
Temperature: Operation 10~40°c; Storage -20~55°c
Relative humidity: Operation ≤80%, non-condensing; Storage ≤93%,
non-condensing
Atmospheric pressure: Operation 70~106KPa
Order information
Option: Compressor
Accessories: Power cord, Gas pipeline, Patient circuit, Face mask,
Humidifier, Support arm
Option
☆ 12.1 inch TFT touch screen

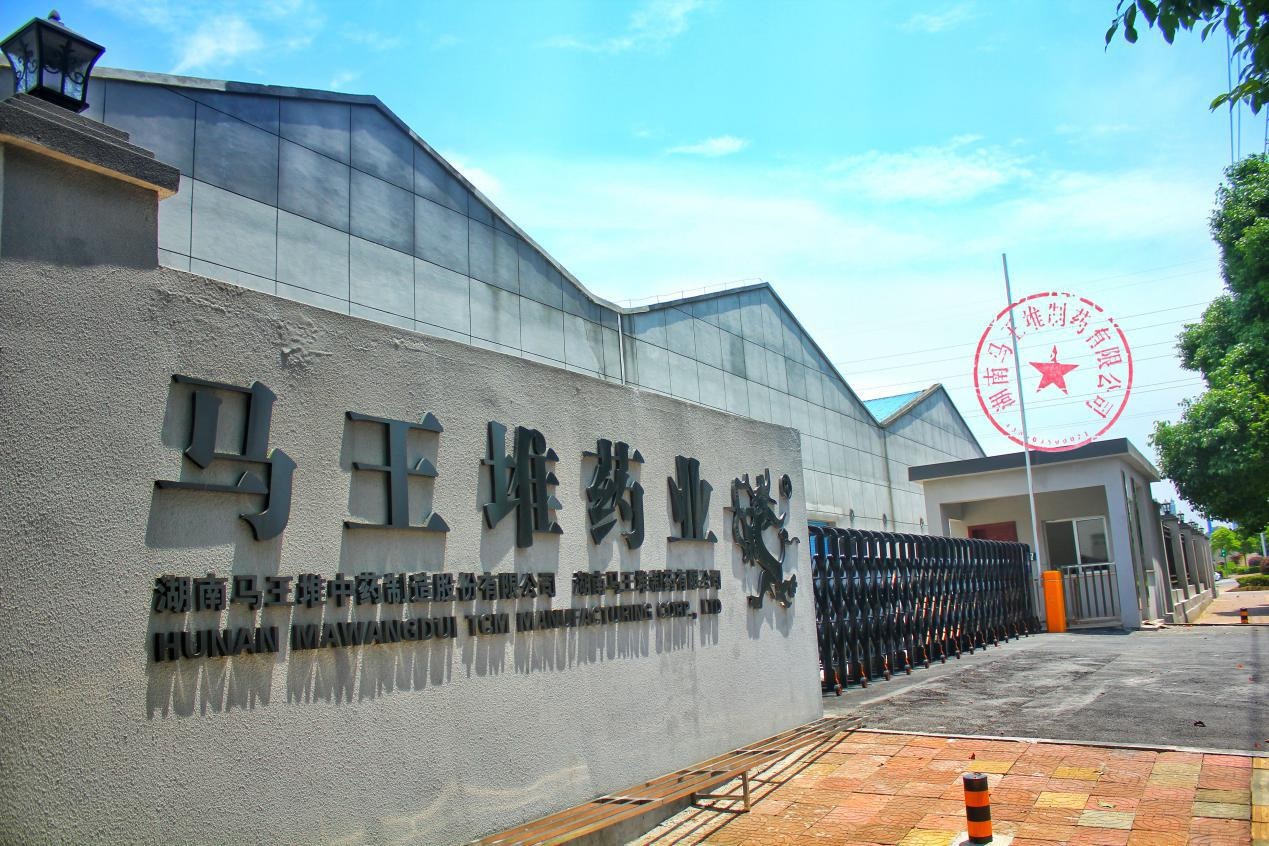

Company Profile
Packaging & Delivery
Packaging details: Carton
Single package size:: 63X63X105 cm
Port: Beijing, China
Picture sample:
